Signal generator (CB21057E)

Details
Written by: Newton C. Braga

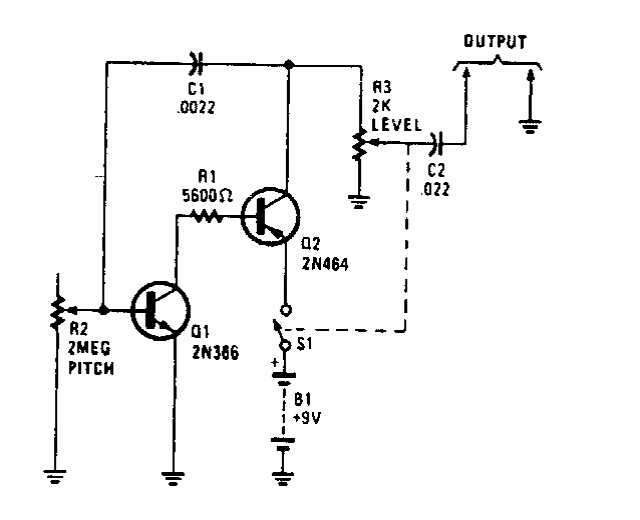

Found in Popular Electronics, this '90s circuit generates harmonic-rich signals for testing audio equipment.
