Power zener (CB21503E)

Details
Written by: Newton C. Braga

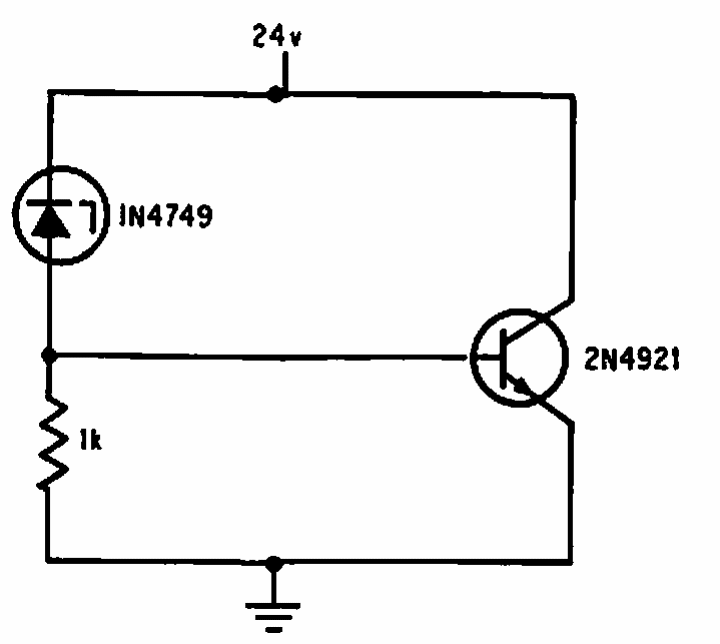

In the figure we have the way to implement a power zener diode. The voltage depends on the zener, and the maximum current of the transistor.
