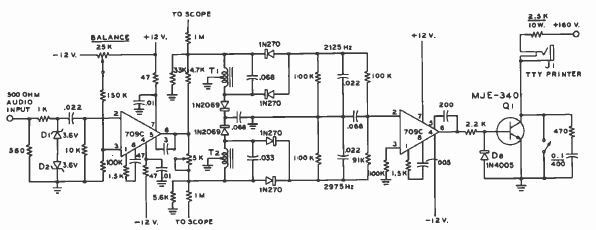

RTTY Demodulator (CB21760E)

Details
Written by: Newton C. Braga



This circuit was found in a 1977 radio amateur manual. Integrated circuits are operational amplifiers of the time.
