Difference amplifier (CB21720E)

Details
Written by: Newton C. Braga

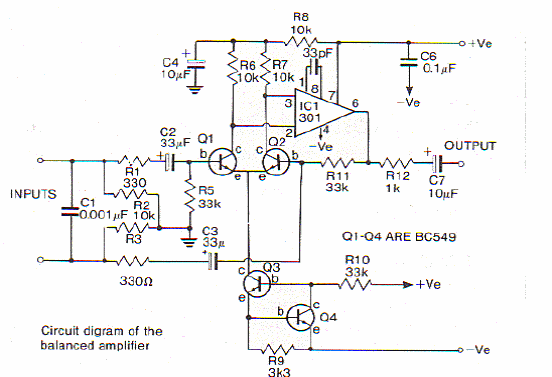

The circuit shown has a differential input and employs transistors of an array of matched types. The circuit requires a symmetrical source and has been found in a foreign component manual.
