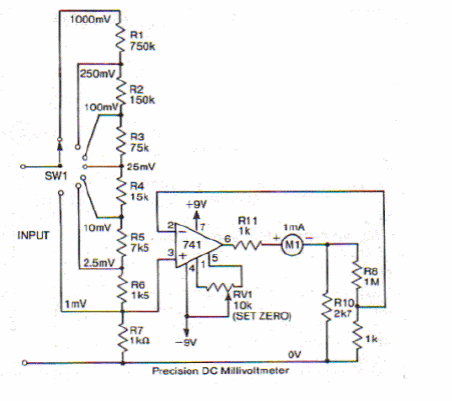

Precision Voltmeter with the 741 IC (CB21679E)

Details
Written by: Newton C. Braga



Several circuits similar to this one can be found on our website. This is from an internet documentation. The instrument has 1 mA full scale, and the power supply is symmetrical.
