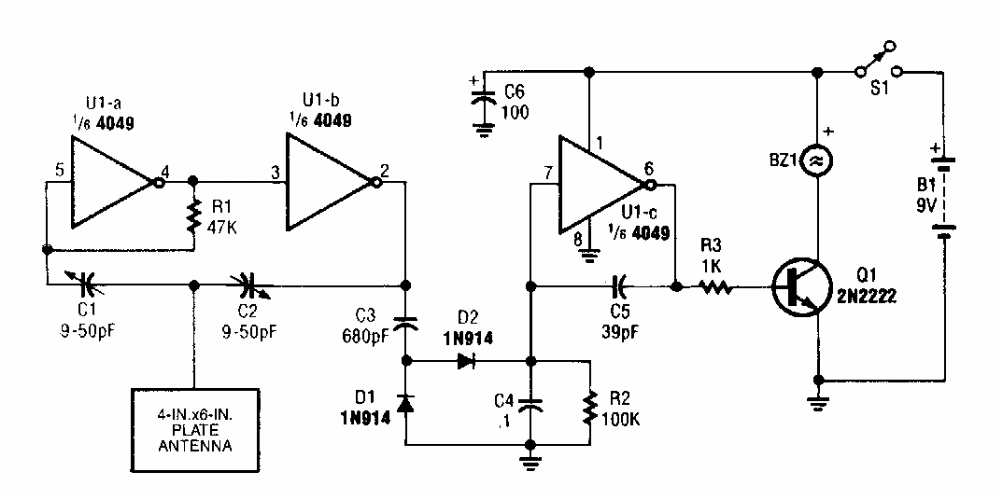

Proximity alarm (CB21300E)

This circuit was found in a Popular Electronics from the 90's. The components used are common and instead of the buzzer we can use an LED or a relay.

| Clique na imagem para ampliar |
