Fluorescent Inverter (CB21180E)

Details
Written by: Newton C. Braga

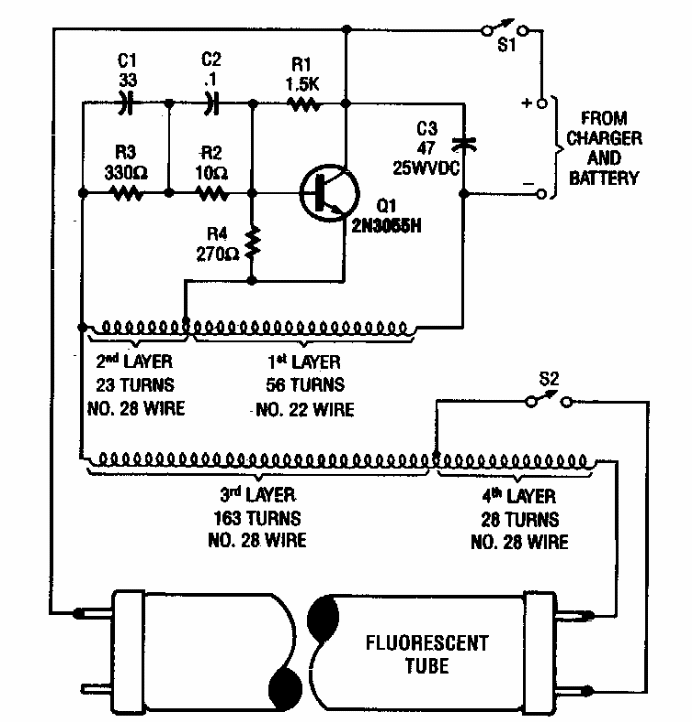

This circuit, with a 12 V input, was found in a Popular Electronics from the 1990s. Information is given about the ferrite-wrapped transformer. The transistor must be mounted on a heatsink.




| Clique na imagem para ampliar |
