Basic Trigger (CB21462E)

Details
Written by: Newton C. Braga

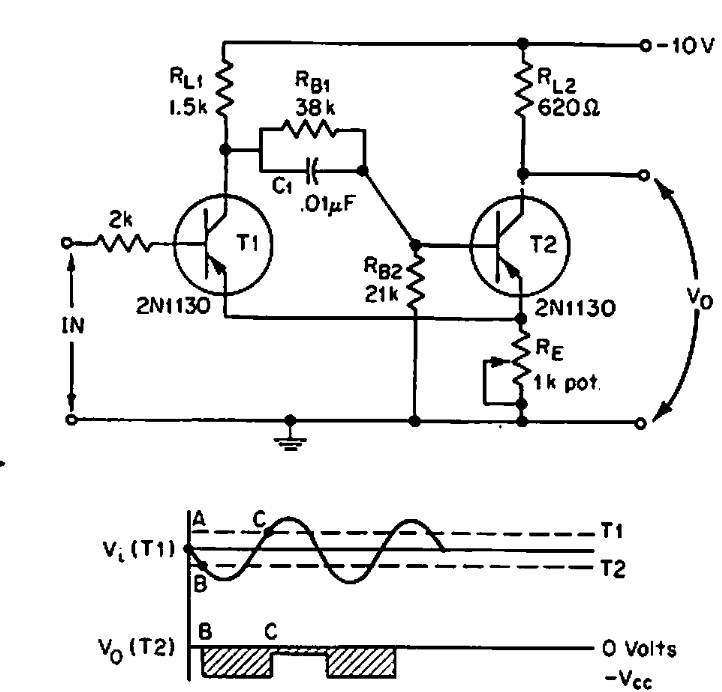

This basic Schmitt trigger was found in an American publication from 1968. The circuit uses transistors from the time. Modern general-purpose types can be used.




| Clique na imagem para ampliar |
