Shortwave receiver (CB21205E)

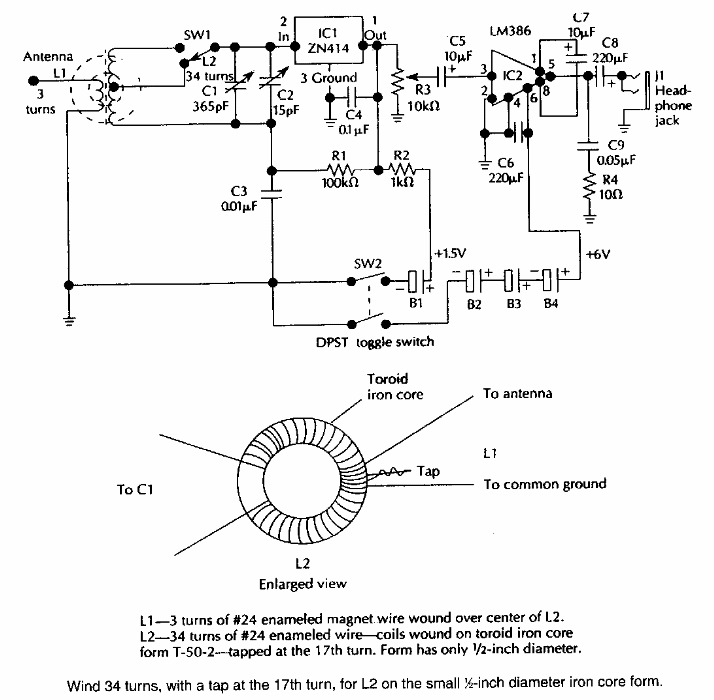

This receiver for frequencies up to 18 MHz was found in American documentation from the 1990s. Data for coil winding is aggregated.

| Clique na imagem para ampliar |
