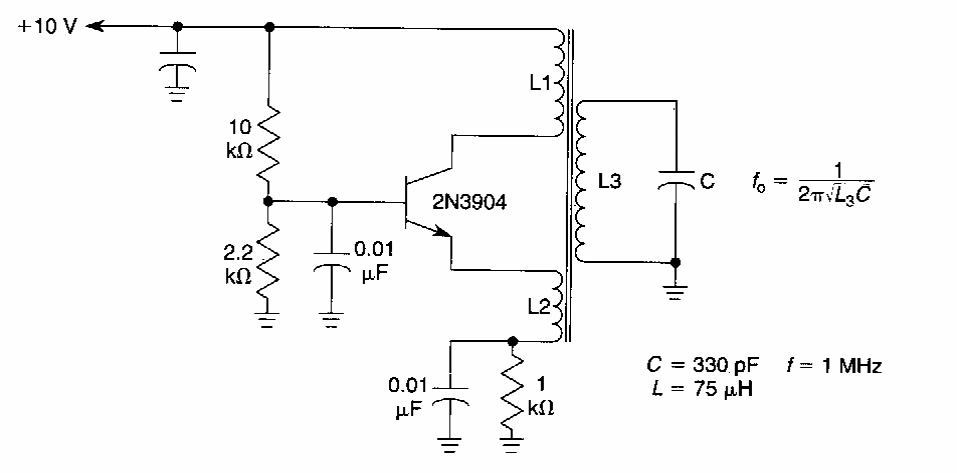

This inductively coupled oscillator was found in an American documentation from the 90's. The circuit with the indicated components generates a 1 MHz L1 signal typically has 10 times the number of turns of L3.
| Clique na imagem para ampliar |
Reinartz Oscillator (CB21135E)
