SCR full wave control (CB20711E)
- Details
- Written by: Newton C. Braga

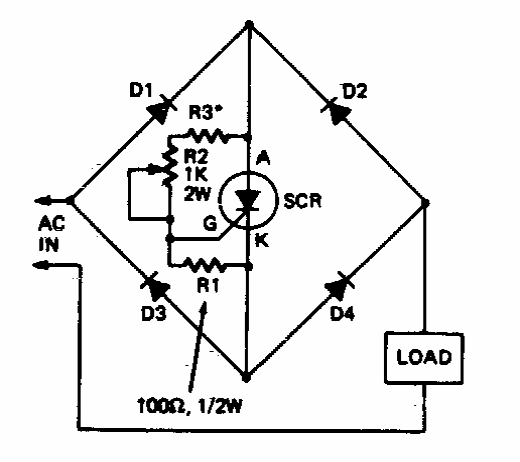

This circuit with diode bridge was found in documentation from the 70s. Both the SCR and the diodes must be in accordance with the controlled load power.
