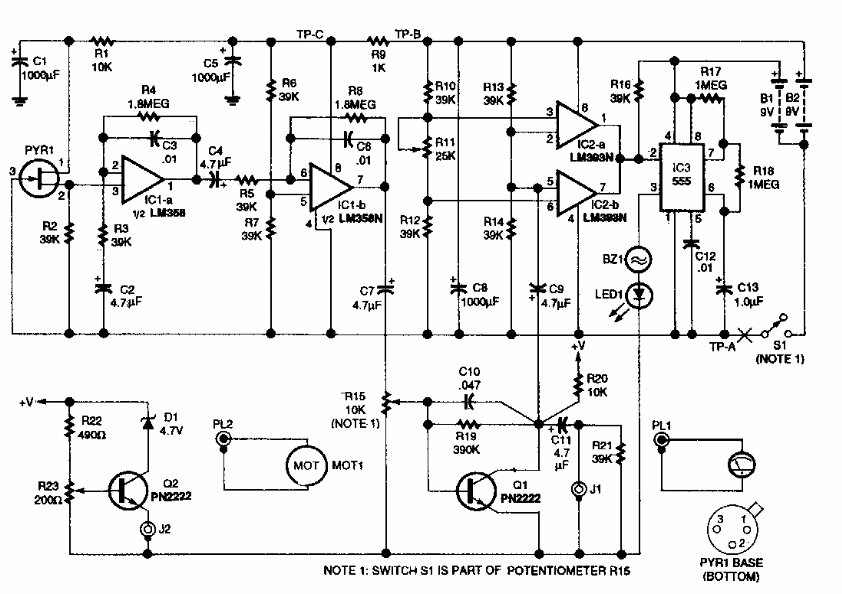

This circuit detects the body's heat emissions and can trigger a load, for example, a solenoid or an alarm. The circuit was found at Electronics Now. It makes use of a sensor for the 14u infrared range.
| Clique na imagem para ampliar |
Body Heat Sensor (CB20975E)
- Details
- Written by: Newton C. Braga
