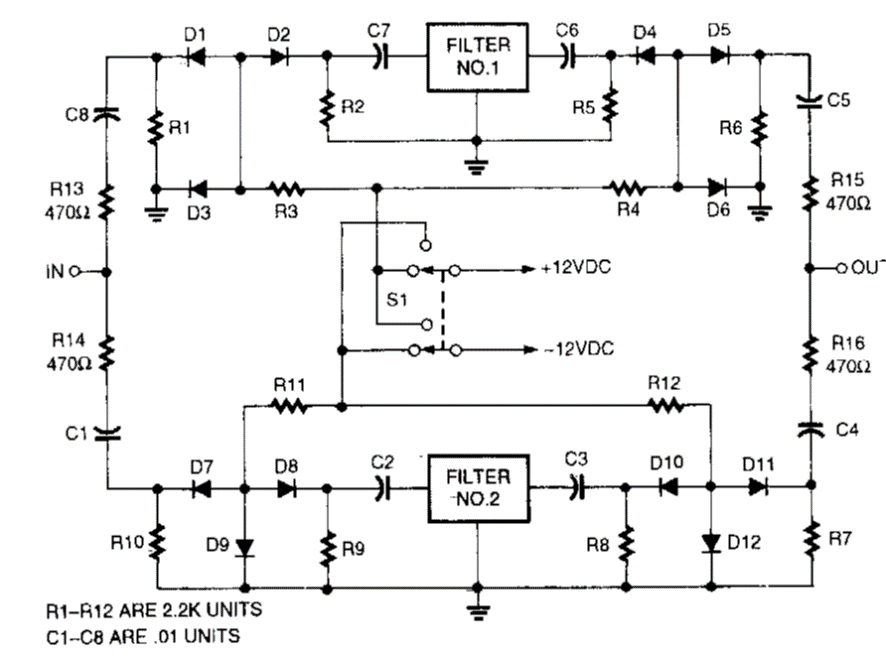

Filter selection circuit with PIN diode (CB20933E)

Found in Popular Electronics from the 1980s, this circuit is intended for switching filters with PIN diodes.
