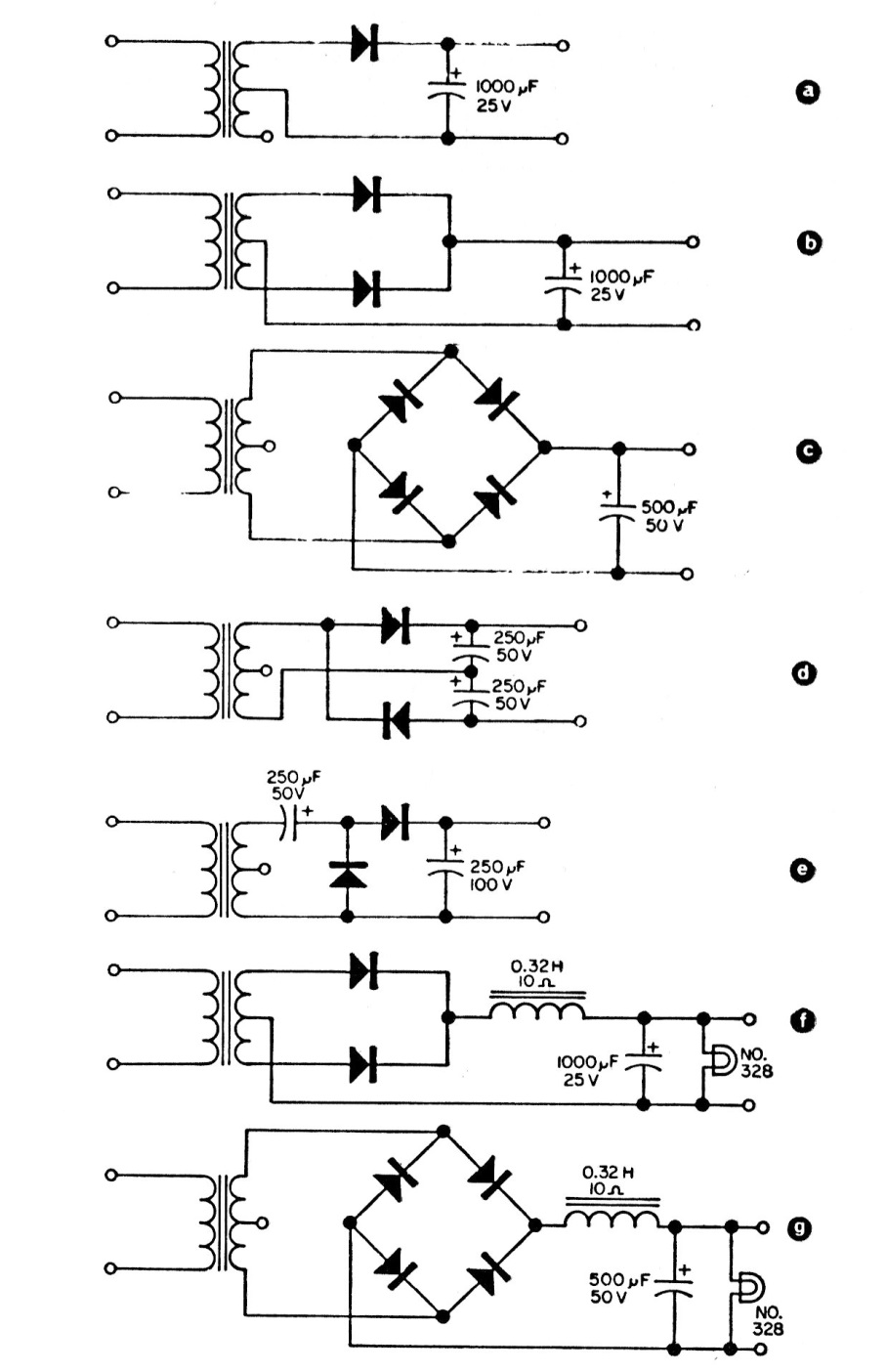

In the figure below we have the main configurations of power supplies with the most used rectification and filtering steps. The components must be in accordance with the current voltage desired in each case.
| Clique na imagem para ampliar |
Simple Power Supplies (CB20187E)
- Details
- Written by: Newton C. Braga
