Analog to Digital Converter (CB20145E)

Details
Written by: Newton C. Braga

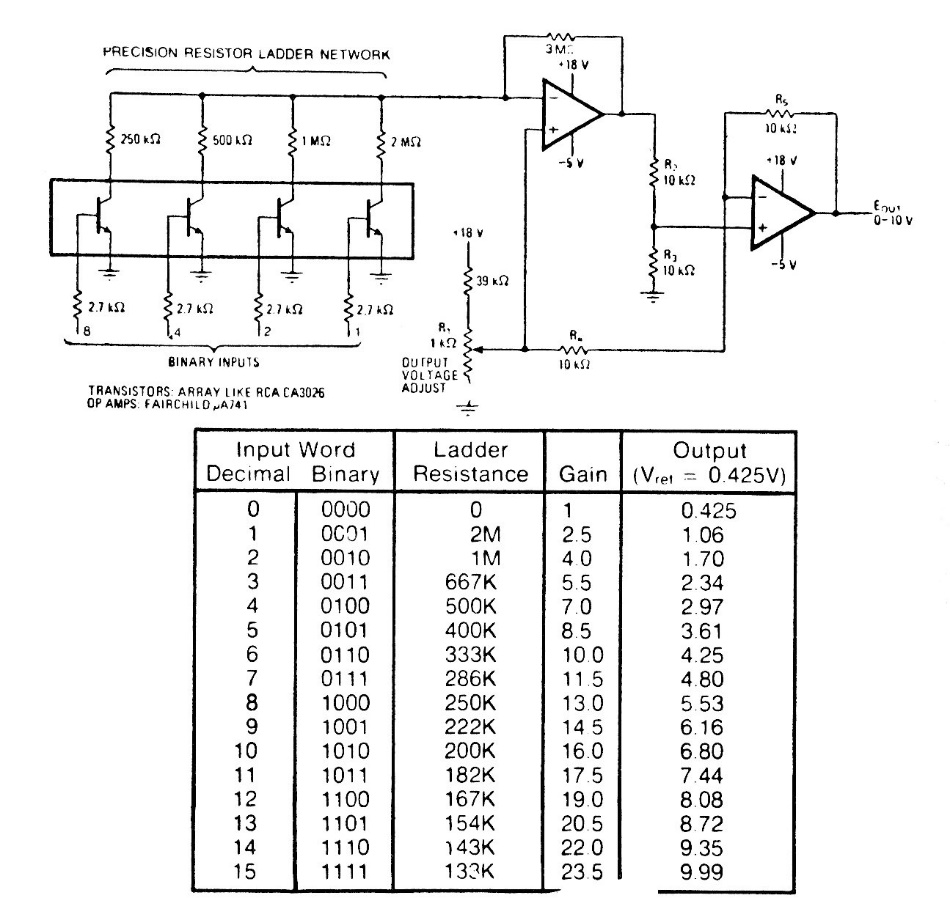

This AD converter uses common components and can be implemented based on modern operationals. The circuit is from 1980s documentation. The table shows the output voltages as a function of the digital input programming.




| Clique na imagem para ampliar |
