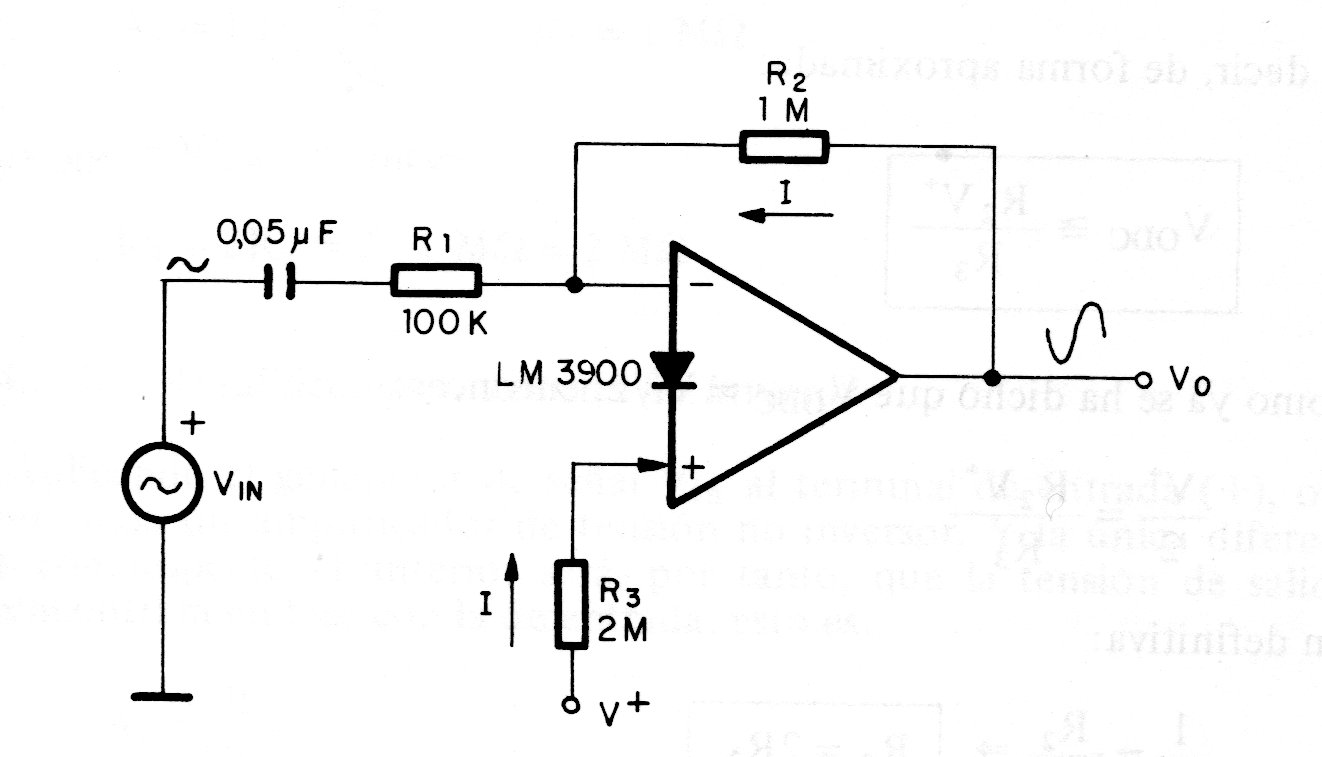

In the figure we have the basic configuration of an operational amplifier for AC signals using the LM3900, a transconductance operational that can still be found with some ease. R2 and R1 can be changed to obtain other gains.
