Modulator with TAA111 (CB19432E)

Details
Written by: Newton C. Braga

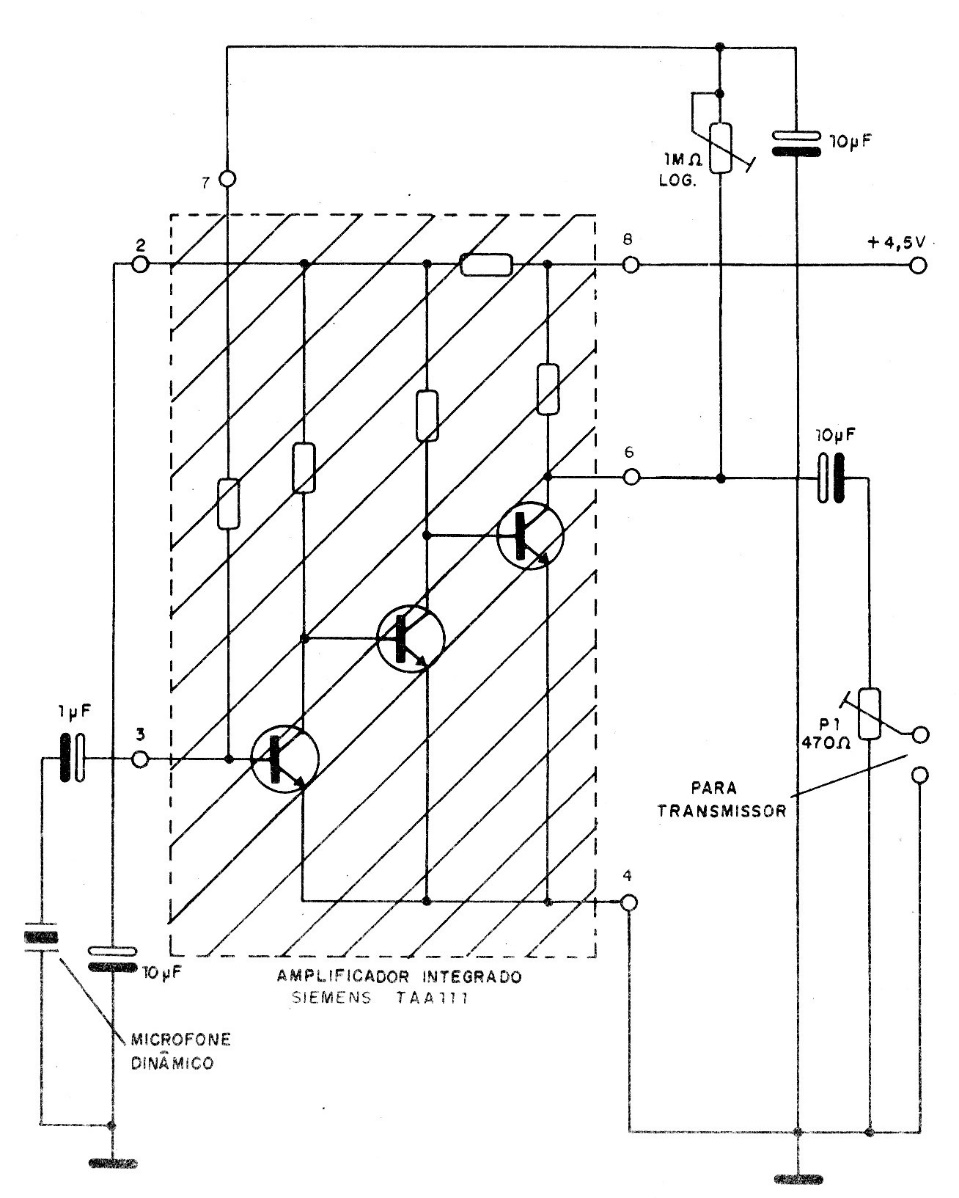

This circuit is suitable for modulating small FM transmitters for eavesdropping or espionage. The circuit is from the documentation of the 90s and the integrated circuit used is not the most common today.
