Photo sensitive relay (T1531E)

Details
Written by: Newton C. Braga

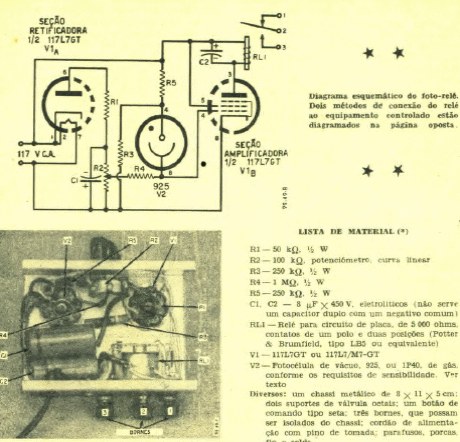

Found in Popular Electronics from October 1956, this circuit is based on a photoelectric tube, common at the time. The relay is a high voltage type.
