2-tube reflex receiver (T1654E)

Details
Written by: Newton C. Braga

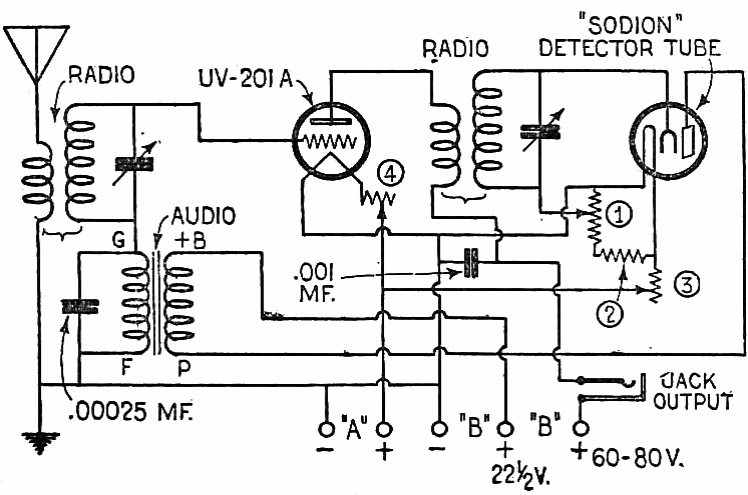

This interesting circuit uses a sodion valve that we have already described in an article on the website. The circuit uses several batteries for power. The phone is of high impedance.
