12W Amplifier (T1694E)

Details
Written by: Newton C. Braga

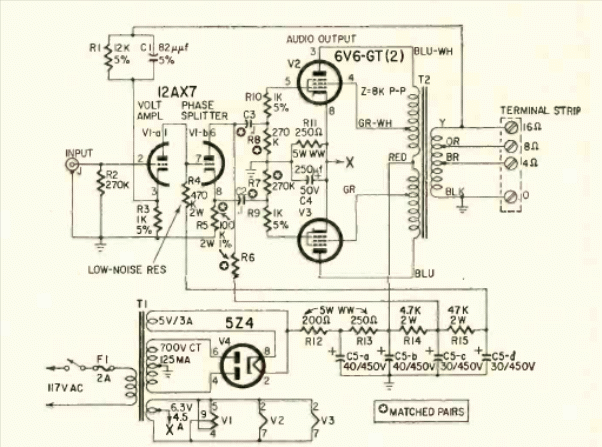

This 12 W amplifier with push pull tubes appeared in the Radio Electronics magazine of August 1958 which taught how to assemble it. The article had the complete diagram with the power supply.
