LM73 and LM73 Q1 Temperature sensor with 2-wire interface (ART336aE)

   Texas Instruments recently introduced the temperature sensors LM73 / LM73-Q1 for Surface Mount (SOT23), with a 2-wire (two-wire) interface for applications such as vehicle climate control, steering systems, instrumentation monitoring, and so on. See this article for more details on this component.

   The Texas Instruments LM73 and LM73-Q1 integrated circuits consists of temperature sensors containing an incremental Sigma-Delta ADC that provides digitized outputs from 11 to 14 bits with a 2-wire (2-wire) interface.

  Compatibility is with SMBus and I2C buses and can be activated to read the temperature at any time. The housing is SOT23 with the pinout shown in figure 1.



Figure 1 - Housing
Figure 1 - Housing



   More details on these components can be found in the datasheet available at http://www.ti.com/lit/ds/symlink/lm73-q1.pdf  , such as the function of each component pin.

   Mouser Electronics is one of the distributors that can provide this component by simply accessing: http://www.mouser.com/search/refine.aspx?Ntk=P_MarCom&Ntt=146110030

   The operating temperature range of the LM73-Q1 ranges from -40 ° C to + 125 ° C with an accuracy of +/- 1.45 ° C in the range of -10 ° C to + 80 ° C and the supply voltage is 2.7 V.

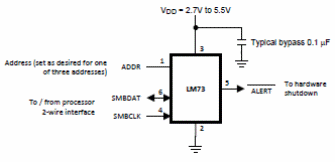

   In figure 2 we have an application circuit.



Figure 2 - Application
Figure 2 - Application



   The devices also have options for adjustment of resolution which allows optimizing the accuracy for a specific application.

   The operating current is 320 uA and in shutdown condition this current drops to 1.5 uA, typical values.

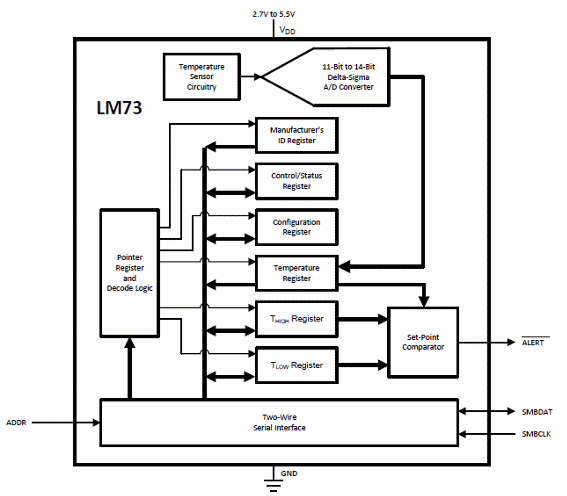

   In figure 3 we have the functional diagram of this temperature sensor.



Figure 3 - Functional diagram
Figure 3 - Functional diagram



   Important function to be considered in this component is ALERT which indicates an overtemperature condition. The point at which this occurs can be adjusted externally.
