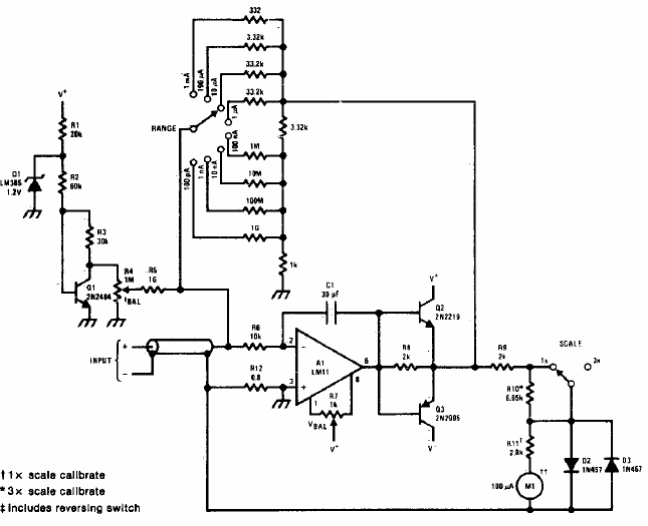

This circuit was obtained from a manual of the integrated circuit itself, but can be applied to other integrated circuits. The circuit has current ranges from 100 nA to 1 mA and a low current range from a standard multimeter can be used. Circuit accuracy depends on divider resistors.
| Clique na imagem para ampliar |
