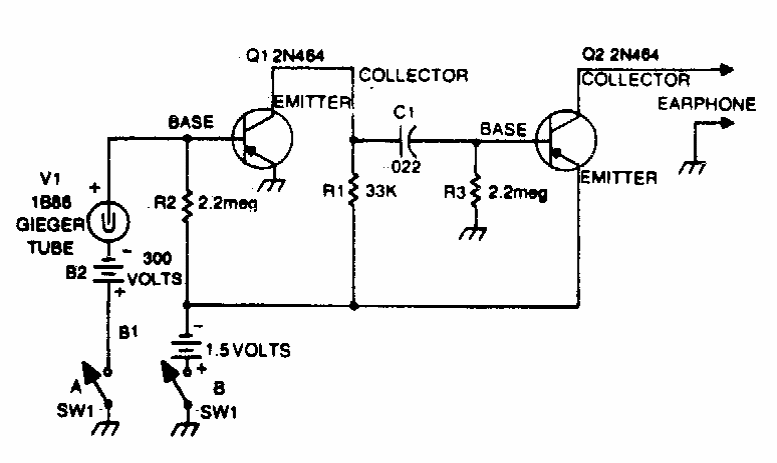

Critical components of this project are the Geiger tube and the 300V battery. The battery can be replaced by a small inverter, as the circuit current is few microamps. The circuit is from an old documentation. Transistors are general purpose types.
| Clique na imagem para ampliar |
