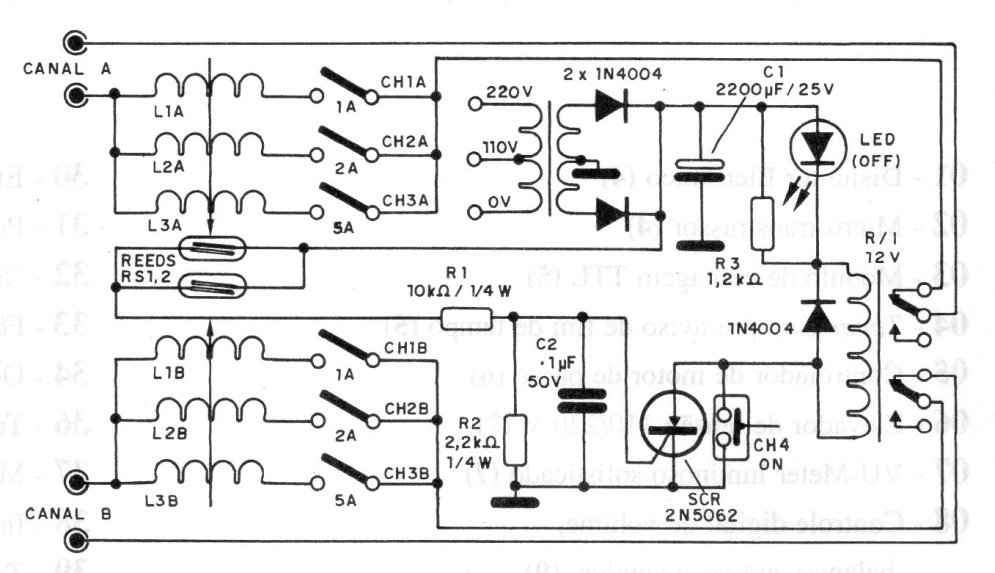

We found this circuit in a 1995 paper. The reed switches are surrounded by a few coils of coarse wire to form sensitive re-relays that are driven by the protected system current. The resistors determine the sensitivity and therefore the tripping current.
