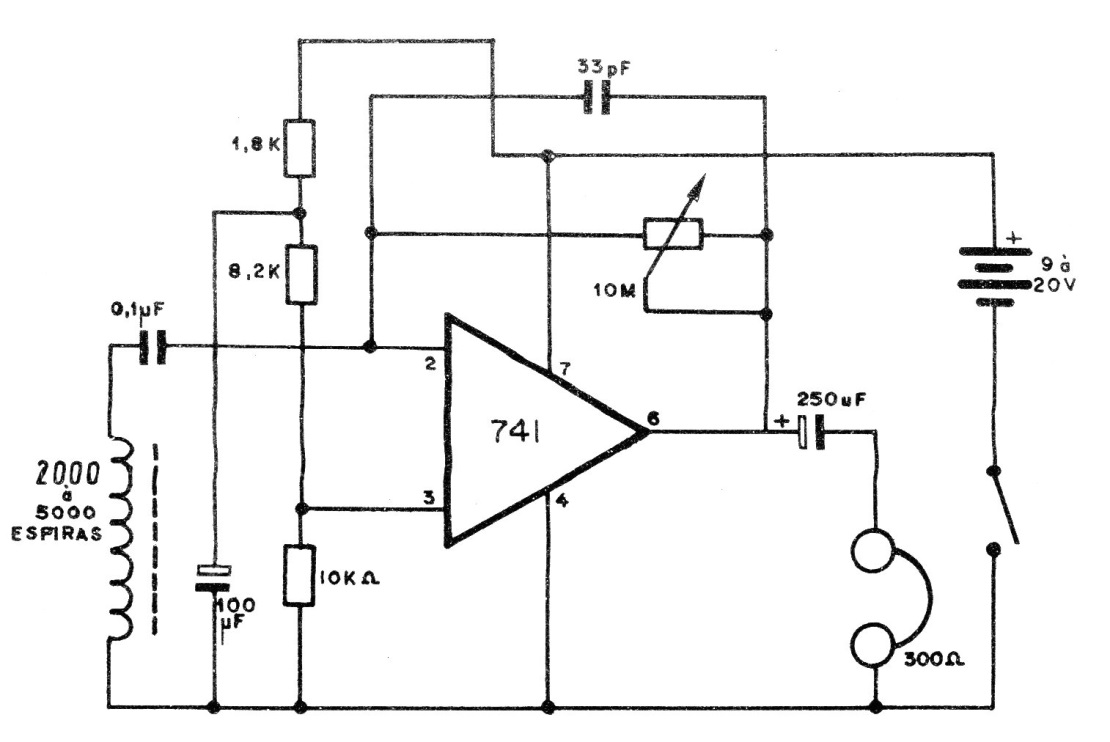

This circuit is a traditional configuration with the 741 Operational Amplifier and its gain is determined by the 10 M potentiometer. At the output we have a headset in which we hear the snoring of the power grid as we approach the sensor to a powered cable. The source can be from 9 to 20 V formed by batteries.
