Comparator with Hysteresis LM158 (CB4480E)

Details
Written by: Newton C. Braga

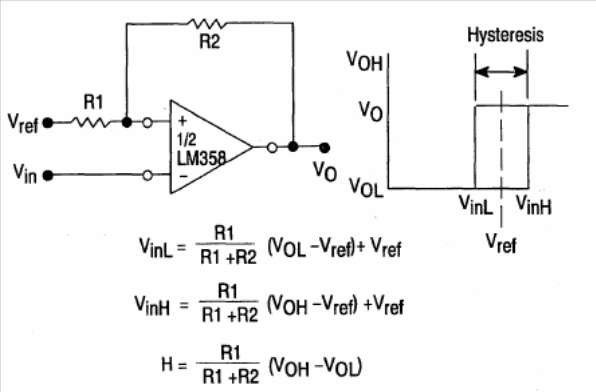

    Other series operationals such as the LM258, LM358 and LM2904 can be used on this circuit of the 1993 Motorola Linear Interface ICs. The formulas attached to the diagram allow the circuit characteristics to be calculated.
