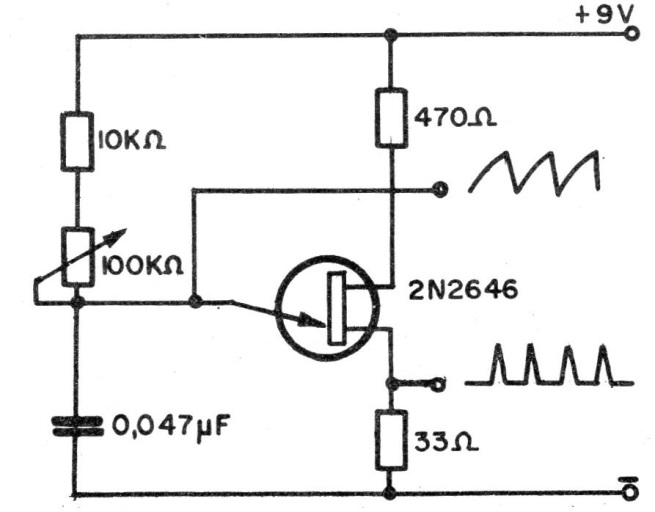

This is the traditional unijunction transistor relaxation oscillator circuit for the audio band. The power supply can actually be made with voltages of 6 to 20 V and the waveforms of the obtained signals are next to the diagram.
