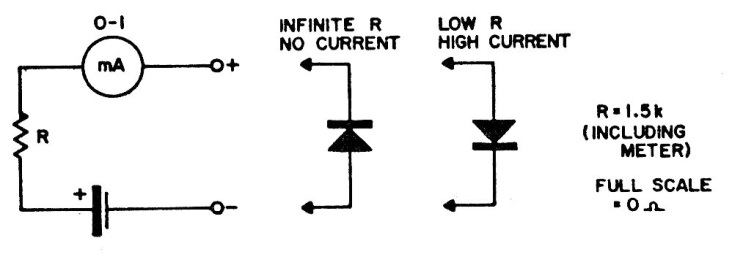

The idea of this circuit is a resistance meter or continuity test with a common microammeter or milliammeter. R is calculated to obtain the full scale current when the probes are joined. In the illustration of the operation we have the proof of a diode.
