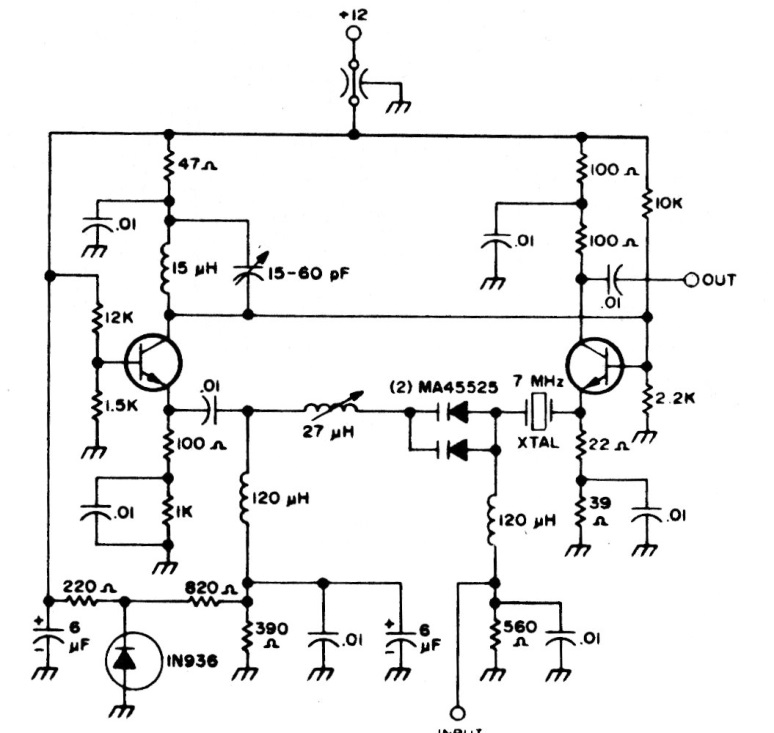

This circuit generates signals that can be adjusted in a small range around the frequency of the crystal used. The circuit is from the 80's and equivalent transistors can be used. The power supply is made with 12 V.
| Clique na imagem para ampliar |
This circuit generates signals that can be adjusted in a small range around the frequency of the crystal used. The circuit is from the 80's and equivalent transistors can be used. The power supply is made with 12 V.
