OR gate with the LM3900 (CB4032E)

Details: Written by: Newton C. Braga

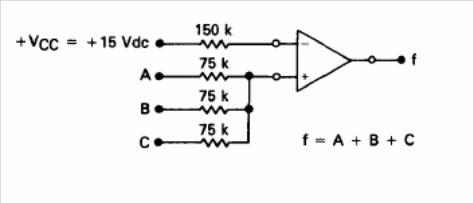

The circuit presented emulates an OR gate with the LM3900, operational transconductance amplifier. The circuit is from the 1990 Motorola Linear Databook.
