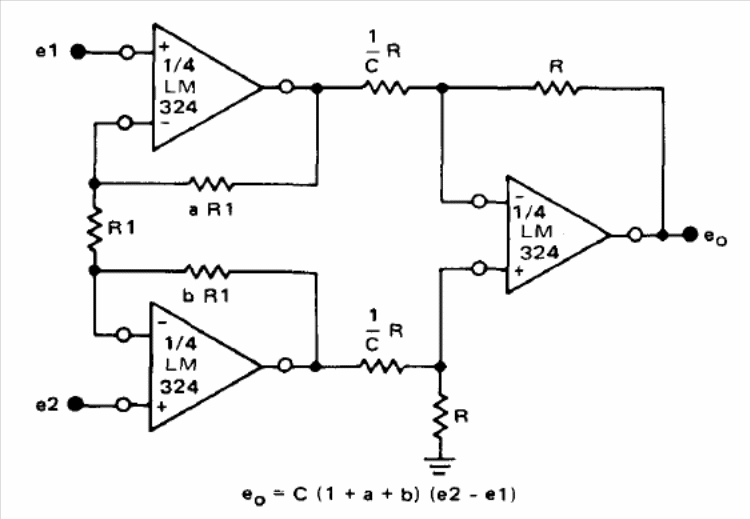

This circuit is from the 1990 Motorola Linear Databook. The circuit can be implemented with other operating circuits. The gain is given by the resistors, according to formula relations. The power supply must be symmetric.
