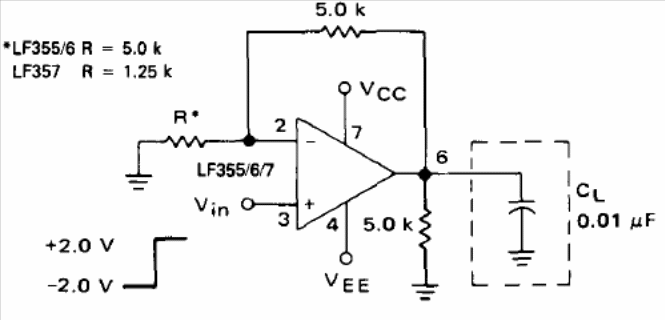

This circuit is from the Motorola LinearDatabook of 1990. It shows how it uses the LF355, 356 and 357 operational capacitive loads. The power supply must be dual.
