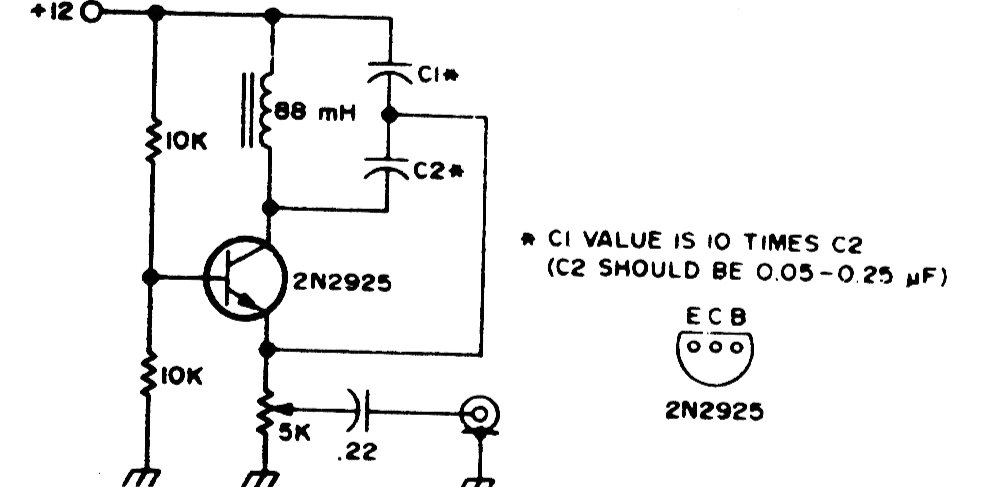

This circuit has been found in older telecommunications documentation. Its purpose is to produce a tone that can be sent and recognized by a remote station. This tone can be used for triggering or recognition. For 1000 Hz C1 must have 220 nF.
