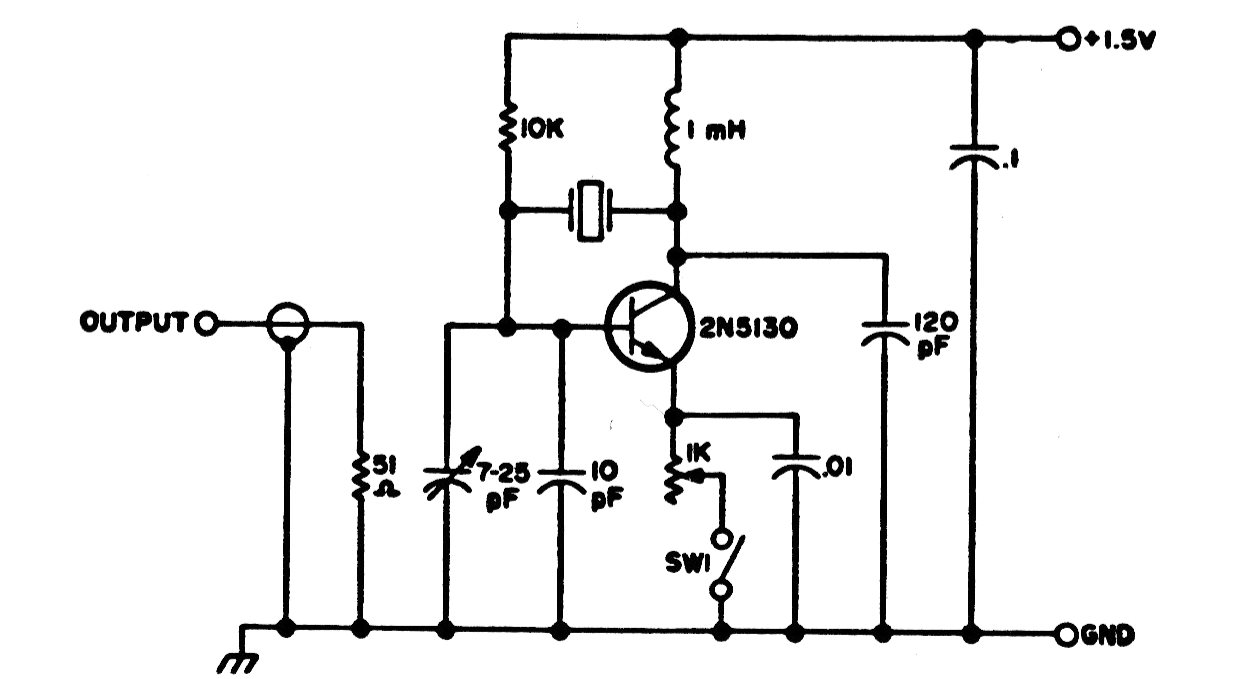

The frequency generated by this circuit depends on the crystal used. Frequencies up to a few tens of megahertz can be generated and the transistor can be a 2N2222 or another switching with at least 200 MHz cutoff frequency. Capacitors must be ceramic.
