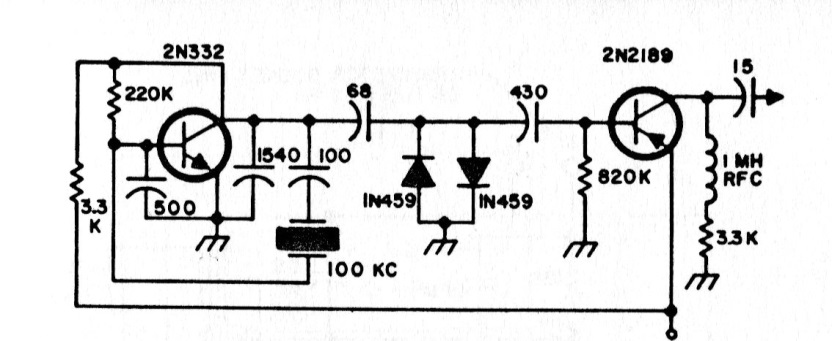

This circuit generates a precise 100 kHz signal. The signal is given by a crystal and can be used for calibration of various types of circuits. Transistors can be modern types such as BC548 or 2N2222. The circuit is from an old American publication. The power supply can be made with voltages from 9 to 15 V.
| Clique na imagem para ampliar |
