This circuit uses damped oscillations to test an inductor. It can also be used to find the inductance of an inductor. The function generator is adjusted to source a 50 Hz x 10 V square signal.The damping factor is adjusted by P1. The circuit used in the simulation is in figure 1.

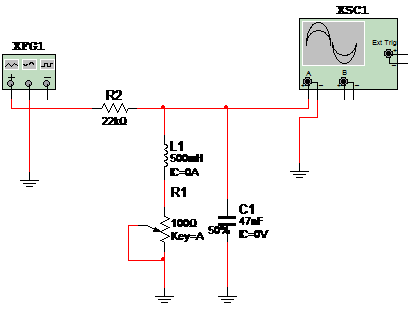

Figure 1 – The circuit
Figure 1 – The circuit

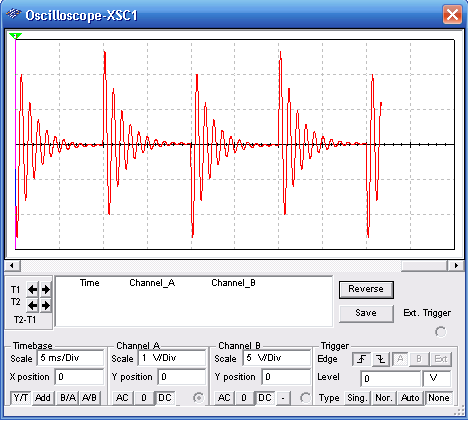

Figure 2 shows the wave shape in the circuit for a good inductor as displayed by the virtual oscilloscope of the Multisim.



Figure 2 – Wave shape in the circuit.
Figure 2 – Wave shape in the circuit.





Download the simulation files and Netlist - click here (msb0073.zip)
